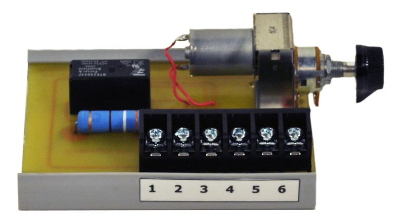

MP12/24
Motorized Potentiometer
The Power-Tronics MP12/24
Motorized Potentiometer is an
optional add-on module for Power-
Tronics voltage regulating systems
designed to allow the voltage
regulator to receive control signals
from a Genset or VAR controller or
other remote computerized control
system that relies on a set of dry
contacts or a motorized potentiometer
for control.
The MP12/24 is the latest upgrade to
the Power-Tronics MP product line
and replaces previous MP12 and
MP24 series Motorized
Potentiometers. The MP12/24 is a
very rugged and reliable interface
module designed to last a lifetime.
The MP12/24 offers 2 different modes
of operation: Fully Automatic, and
Automatic/Manual selectable for the
convenience of the system operator.
Specifications
The Power-Tronics MP12/24 is
mounted to a snap-trak rail to facilitate
mounting in a control panel or cubicle
and to facilitate maintenance should
the need ever arise.
Input Voltage*:
MP12: 12VDC
MP24: 24VDC
Potentiometer Resistance:
0-100KΩ @ 1/2W
Physical Size:
3 x 4 x 1.75 in.
Weight:
6 oz
* Input voltage Relates to Model Name and Must be Specified at Time of Order!
The MP12/24 is compatible with all
UVR and XR series Power-Tronics
Universal Voltage Regulators, PC500,
XR, and UVR series Phase
Controllers, and most Power-Tronics
full Static Exciters.
© 2012 Power-Tronics, Inc.
