SE2000B-3P
3-Phase Static Exciter

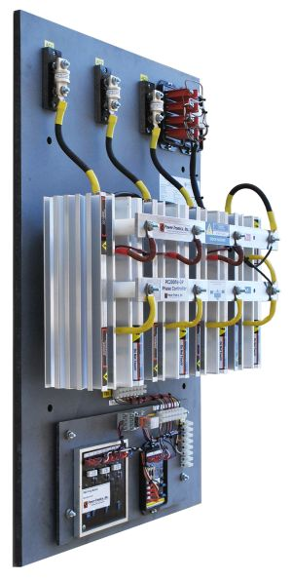

The Power-Tronics SE2000B-3P 3-Phase
Static Exciter is a self-contained complete
Static Exciter. The SE2000B-3P 3-Phase
Static Exciter is designed for continuous
operation at up to 250vdc at 200adc!
The SE2000B-3P is uniquely designed to
sit in a compact footprint while being
passively convection cooled for a long
service life. Because of its unique
modular design, the SE2000B-3P
minimizes downtime should a repair ever
be necessary! The SE2000B-3P’s
compact design allows a wide variety of
installation methods, including installations
where space is at a premium.
Specifications
The SE2000B-3P is a time-proven design,
utilizing high-reliability components and a
unique modular design to simplify repair.
This product also features loss of sensing
protection. If the sensing voltage is lost,
the unit will shut down to prevent
catastrophic damage caused by runaway
voltage!
Input Voltage:
208 - 240vac, 3ø
The SE2000B-3P is also capable of
parallel operation with other generators or
with a utility buss. Power-Tronics’ wide
variety of optional accessories also allows
the SE2000B-3P to be remotely operated
by dry contact switching or by a PLC
controller!
Sensing Voltage:
120vac, 3ø
Frequency:
50 or 60 Hz
Voltage Regulation:
+/- .5% From NL to FL
Parallel Operation
Yes
Output Voltage:
0-250vdc @ 240vac input
Maximum Continuous Output:
200adc
Minimum Field Resistance:
1.25Ω @ 250vdc output
Regulation Type:
Flat Response
Physical Size:
24 x 36 x 10 in.
Weight:
65 lb.
The SE2000B-3P is designed to provide a
lifetime of service and is specifically built
to minimize failures and potential
downtime!
Voltage Regulator:
VM120-3
Firing Module:
FM4
Internal Build-Up Provisions:
Optional
Repairable:
Yes
Internal Protection:
Fuses, cartridge type
External Voltage Adjustment:
Yes
Loss Of Sensing Protection:
Yes
