SE450
Static Exciter Module

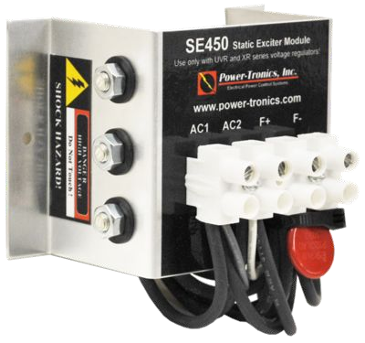

The Power-Tronics SE450 Static Exciter
Module is a self-contained external
rectifier assembly for all Power-Tronics XR
and UVR series voltage regulators. The
SE450 Static Exciter Module allows a
standard Power-Tronics voltage regulator
to control exciter fields with current
requirements up to 25 amps DC at
210VDC!
The SE450 is a unique design, intended to
sit on top of the voltage regulator to
simplify installation and reduce installation
space. Because of it's unique modular
design, it reduces the need to stock
special voltage regulators for higher
current exciter fields, reducing the amount
of products needed to be kept in stock and
vastly simplifying voltage regulator
replacement!
Specifications
The SE450 is a very robust design and is
intended to operate for a lifetime.
However, should repair ever be
necessary, the SE450 is extremely simple
to repair, minimizing downtime!
Input Voltage:
120 / 208 or 240vac
Frequency:
N/A
Output Voltage:
0-105vdc @ 120vac input
The SE450 is also capable of operating in
a tandem condition with 2 SE450 modules
connected to a single voltage regulator for
exciter fields requiring up to 50 amps DC
at 210VDC continuous!
0-210vdc @ 240vac input
Maximum Continuous Output:
25adc
Maximum Forcing Output:
30adc
Minimum Field Resistance:
4.2Ω @ 105vdc output
8.4Ω @ 210vdc output
Physical Size:
3.25 x 3.50 x 4.75 in.
Weight:
10 oz
Repairable:
Yes
The SE450 Static Exciter is compatible
with all Power-Tronics UVR, XR, and
certain older VR series voltage regulators,
as well as the Power-Tronics PC500X,
UVR500PC, and XR500PC phase
controllers!
