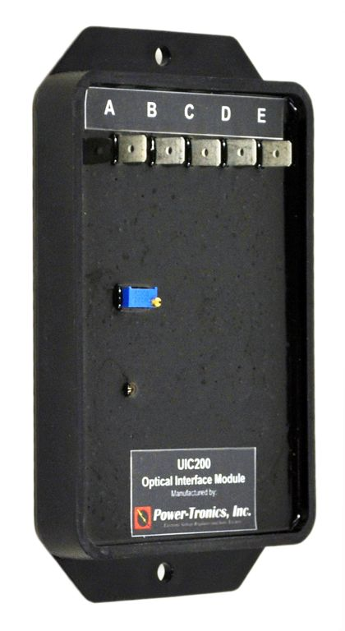

UIC200
Optical Interface Module
The Power-Tronics UIC200 Optical Interface
Module is an optional add-on module for
Power-Tronics voltage regulating systems
designed to allow the voltage regulator to
receive control signals from a Genset or
VAR controller or other remote
computerized control system.
The UIC200 is the latest upgrade to the
Power-Tronics UIC product line and
replaces the UIC100 and UIC100X series
Optical Interface Modules. The UIC200 is a
very rugged and reliable interface module
designed to last a lifetime.
The UIC200 offers 2 different modes of
operation: Fully Automatic, and
Automatic/Manual selectable for the
convenience of the system operator.
The Power-Tronics UIC200 is fully
encapsulated to ensure a long service life
and protect the unit from moisture or
external contamination.
Specifications
The UIC200 is compatible with all UVR and
XR series Power-Tronics Universal Voltage
Regulators, PC500, XR, and UVR series
Phase Controllers, and most Power-Tronics
full Static Exciters.
Input Voltage:
+/- 10vdc
Maximum Input Output:
250mA
Physical Size:
3.5 x 5.5 x 1 in.
Weight:
6 oz
Fully Encapsulated:
Yes
