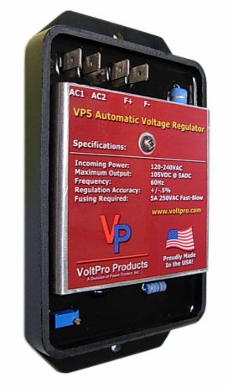

The VP5 is an affordable generator voltage regulator
that is designed for the consumer market and can
replace most voltage regulating systems on small
portable generators and larger brushless generators
up to 150kw.
The VP5 is manufactured with only high quality parts
and every single regulator is vigorously tested both
by static and real generator testing before final
packaging.
The VP5 is specifically designed to be very simple to
install. It has only 4 connections to make to the
generator and only one simple voltage adjustment
screw. There are no other controls because the
regulator automatically matches itself to the
generator.
The VP5 is totally encapsulated to withstand harsh
vibration and environmental conditions. It is easily
mounted with only 2 screws or other fasteners.
Specifications:
Built in America
Input / Sensing Voltage
120 / 240vac
Maximum Continuous Output Amperage
5adc
Frequency
60hz
Regulation Accuracy
+/- .5%
By Americans!
Dimensions
5.5 x 3.25 x 1in
Weight
8oz
Customer Fusing Required
Fast Blow 5adc @ 250vac
VoltPro Products is a division of Power-Tronics, Inc. P.O. Box 291509, Kerrville, TX 78029
Products manufactured for VoltPro Products are designed and manufactured for the consumer market and are not
technically supported by Power-Tronics, Inc.
©
VoltPro Products 2011
