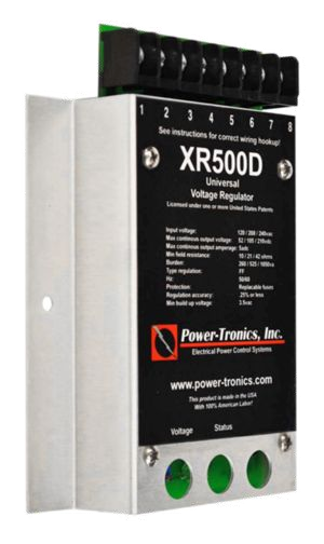

XR500D
Universal Voltage Regulator
The Power-Tronics XR500D Universal Voltage
Regulator is the latest upgrade for all UVR and
XR series voltage regulators. The XR500D is
also capable of replacing other manufacturers'
voltage regulators and has optional Static
Exciter Modules to boost its capacity to 30 amps
DC!
The XR500D is a unique, Universal voltage
regulator that is designed specifically for
Professional Electrical Generator Service
Technicians and the Electrical Generator Repair
Industry. It incorporates an easily selectable
frequency range for voltage roll-off during under-
frequency operation and offers precise voltage
regulation regardless of the connected load and
ambient temperature. The XR500D is a
ruggedized design and is engineered to provide
a lifetime of trouble-free operation.
The XR500D contains patented electronic
circuitry that automatically matches the
regulator's response time to the generator
exciter. This unique innovation eliminates the
need to manually adjust stability when setting up
the voltage regulator and greatly simplifies
installation.
Specifications
PLC and automated Genset control is possible
with the XR500D by simply adding an optional,
inexpensive digital interface module. This
capability makes the XR500D suitable for
automated or unattended installations, or large-
scale parallel operations.
Input Voltage:
120 / 208 or 240vac
Frequency:
50 or 60hz
Voltage Regulation:
+/- .25% From NL to FL
Parallel Operation
Yes
Output Voltage:
0-52vdc @ 120vac input
0-105vdc @ 240vac input
0-210vdc @ 240vac input
Like our previous models, the XR500D is fully
repairable! All major electronic components are
not encapsulated to facilitate repair while all
sensitive components are encapsulated to
protect them from contamination and moisture.
Maximum Continuous Output:
5adc
Minimum Field Resistance:
10.5Ω @ 52vdc output
21Ω @ 105vdc output
42Ω @ 210vdc output
Min Residual Build up Voltage:
3.5vac
Under Frequency Protection:
Yes, VPH reduction
Physical Size:
4.75 x 6 x 1 in.
Weight:
7 oz
The XR500D is compatible with all previous and
current optional modules available for use with
Power-Tronics voltage regulators making it
extremely simple to upgrade an older voltage
regulator installation with the modern features
offered by the XR500D.
Repairable:
Yes
Internal Protection:
Fuses, cartridge type
External Voltage Adjustment:
Yes
System Operating Indicator:
Yes
Optional Static Exciter Modules
Yes
Optional External Controls
Yes
© 2012 Power-Tronics, Inc.
